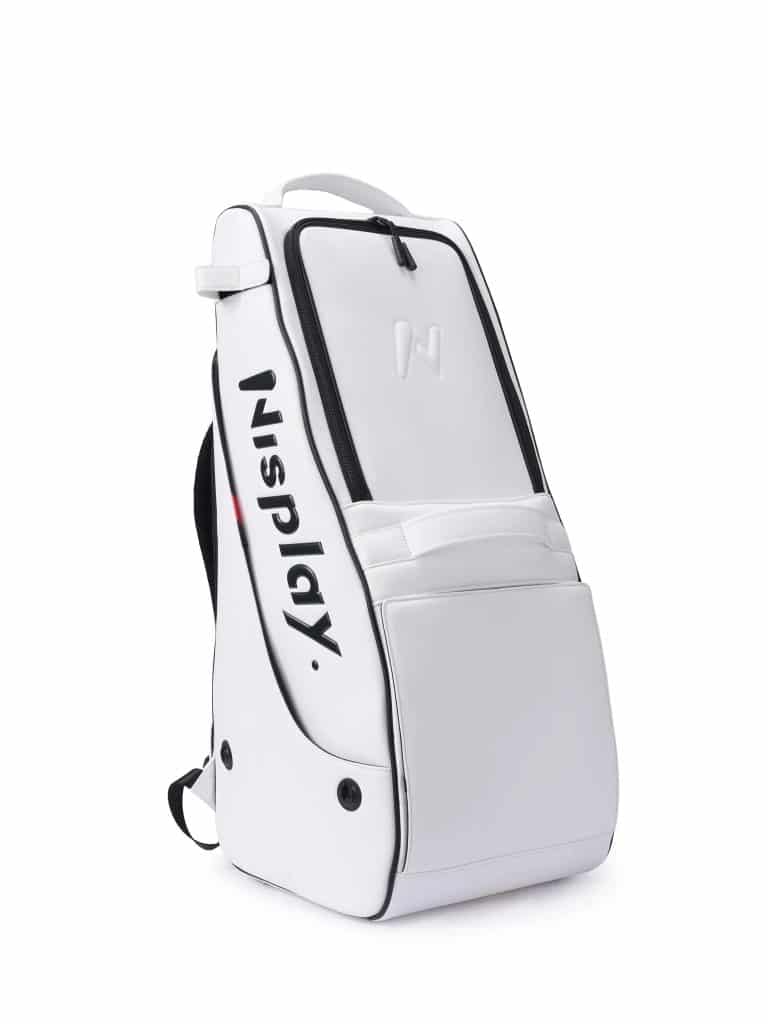

Nisplay Y1
Quick details
Dimensions
11.8 x 12.6 x 28.7 in / 30 x 32 x 73 cm
Battery life Up to 2 hours standard / 4 hours extended
Links View article
Technical specifications
General
Release date 2026
Product type Tennis ball machine
Physical size 11.8 x 12.6 x 28.7 in / 30 x 32 x 73 cm
Weight 8 kg / 17.6 lb
Battery Rechargeable battery; 5 Ah upgrade available
Battery life Up to 2 hours standard / 4 hours extended
Charging Battery charger included
Charging time Approximately 1.5 hours (standard battery)
Tennis machine basics
Machine type Backpack-integrated smart tennis ball machine
Supported sports Tennis
Court surfaces Hard, clay, grass and artificial turf
Warranty 1 year
Ball delivery
Ball speed 5-60 mph
Spin Topspin, backspin and flat
Ball capacity 100+ balls
Feed interval 1.5-10 sec
Elevation / launch angle 10-55 degrees
Oscillation Built-in full-court horizontal oscillation
Shot placements 15 programmable court targets
Maximum lob height Up to 8.1 m / 26 ft
Training & intelligence
Preset drills 10,000+ drills / combinations
Custom drills Yes
Training modes Baseline, Toss, Overhead, 2-Line and custom training
Vision / tracking hardware Optional ReturnSense Radar
Player tracking Yes
Ball tracking No
Adaptive training Yes
Robot movement Stationary
Power options
Swappable battery Yes
AC power option No
Controls
App control Yes
Physical remote Included
Voice control Yes
Gesture control No
Smartwatch control Yes
Links
Read more Article
These technical specs are correct to the best of our knowledge at the time of publishing.
