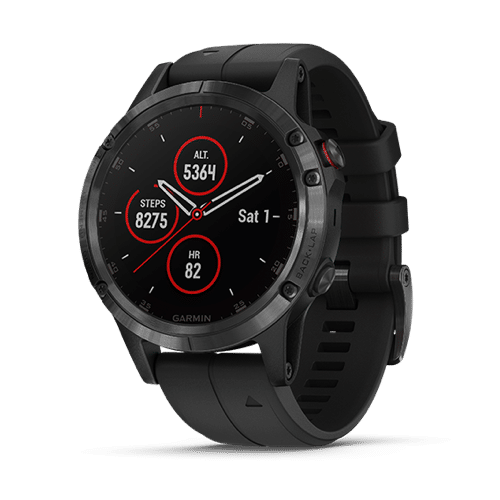

Garmin Fenix 5 Plus
- Screen 1.2 inch MIP (regular variant)
- Battery life up to 20 days
- Water resistance 10 ATM (100 metres)
- Sensors Accelerometer, optical heart rate sensor, barometric altimeter, electronic compass, GPS, GLONASS. 5X version also comes with blood oxygen saturation sensor.
- Date June 2018
Specs
General
| Physical size | 5 plus: 47 x 47 x 15.8 mm; 5s plus: 42 x 42 x 15.4 mm; 5x plus: 51 x 51 x 17.5 mm |
| Material | Bezel Material - steel. 5 Plus and 5X Plus also come in Titanium. Case material - fiber-reinforced polymer with metal rear cover. Strap material - silicone, leather or titanium. |
| Charging | USB |
| Battery | Lithium-ion |
| Battery life | 5 Plus: Smartwatch: Up to 12 days; GPS: Up to 18 hours; GPS and Music: Up to 8 hours. 5S Plus: Smartwatch: Up to 7 days; GPS: Up to 11 hours; GPS and Music: Up to 4.5 hours. 5X Plus: Smartwatch: Up to 20 days; GPS: Up to 32 hours; GPS and Music: Up to 13 hours |
| Water resistance | 10 ATM |
| Weight | 5S Plus: 65g. 5 Plus: 86g. 5X Plus: 96g |
| Display type | Sunlight-visible, transflective memory-in-pixel (MIP) |
| Display size | 5 Plus: 1.2” (30.4 mm) diameter. 5S Plus: 1.2” (30.4 mm) diameter. 5X Plus: 1.2” (30.4 mm) diameter |
| Display resolution | 240 x 240 pixels |
Sensors
| Accelerometer | Yes |
| Barometric altimeter | Yes |
| Compass | Yes |
| Galvanic skin response | No |
| Geomagnetic | No |
| Gyroscope | No |
| Optical heart rate | Yes |
| Electrical heart rate | No |
| SpO2 | only 5X version |
| Temperature | No |
| GPS | Yes |
| GALILEO | Yes |
| GLONASS | Yes |
| QZSS | No |
| Beidou | No |
| Ambient light sensor | No |
| Vibration motor | Yes |
| Microphone | No |
| Speakers | No |
Health & activity tracking
| Steps | Yes |
| Distance | Yes |
| Calories burned | Yes |
| Sports tracking | Yes |
| Floors | Yes |
| Sleep | Yes |
| Heart rate | Yes |
| Stress | Yes |
| Blood oxygen | only 5X version |
| Respiration rate | only 5X version |
| UV exposure | No |
| Skin temperature | No |
| Hydration level | No |
| HRV | No |
| ECG | No |
| Calorie intake | No |
| Blood pressure | No |
| Glucose | No |
Daily smart features
| Smartphone notifications | Yes |
| Smartphone music control | Yes |
| On-board music storage | Yes (up to 500 songs) |
| Connected pay | Yes |
| Cellular | No |
| Connectivity | Bluetooth, ANT+, WiFi |
| Operating system | Proprietary |
| Memory | 64 MB |
Disclaimer Note
These technical specs are correct to the best of our knowledge at the time of publishing.
